Center G100

Overview

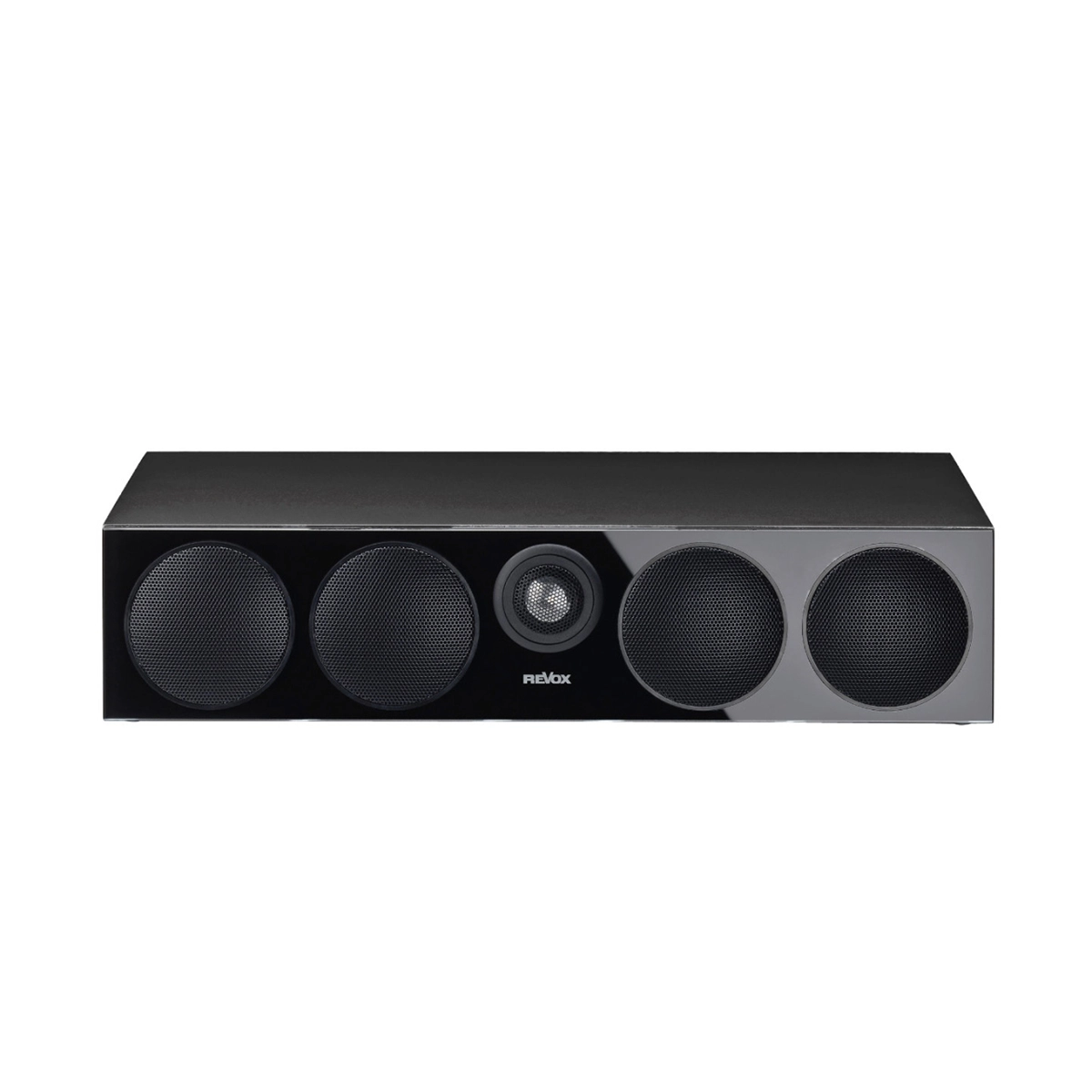

The Revox Center G100 is the dedicated centre-channel speaker in Revox’s “G” speaker series, designed for high-end home cinema systems and premium multi-channel setups. According to Revox, it aims to deliver “realistic voice reproduction and authentic spatial sound” when used alongside other G-series speakers.

It measures 470 × 104 × 260 mm (L×W×H) and weighs 7.6 kg. The frequency range is stated as 45 Hz–30 kHz, making it capable of handling both the lower end of the centre-channel demands and high-frequency clarity.

In short, it’s engineered to match the performance aesthetic of the rest of Revox’s G-series and integrate seamlessly as the voice/focus channel in a premium AV setup.

---

Key Features

• Rated power handling: 130 W into 4 Ω.

• Impedance: 4 ohms.

• Sensitivity: 89 dB (1 m/1W).

• Driver complement:

  • Four x 90 mm aluminium woofers (in the centre module) for the low/mid band.

  • 25 mm aluminium dome tweeter with neodymium magnet for high frequencies.

• Finish options and integration: Available in black, silver/black or white finishes, allowing aesthetic matching in high-end systems.

• Integration-friendly form factor: Slim width (104 mm) which helps with placement in typical centre speaker positions (below or above screen).

• Part of the G-series ecosystem: Designed to match other G-series models (e.g., Shelf G70, Mini G50, Column G70, etc) for consistent voicing across channels.

---

Sound & Usage

In practical use, the Center G100 is optimized for delivering the most critical channel in a surround system: the centre channel. Here’s what that means for sound and system integration:

• Clarity of voices: Given the frequency range to 45 Hz and the well-engineered driver layout, movie dialogue, narration and centre-channel effects should be reproduced with high clarity, presence and authority.

• Integration with main channels: Because it is part of the G-series, its tonality and driver technology align with the matching left/right/front channels, ensuring a seamless timbral match. This is important for surround realism and immersive experience.

• Bass extension: With 45 Hz lower limit, it can deliver more than just mid-band “voice”; it offers a degree of low-frequency support (useful for action sequences, effects) though in serious cinema systems a dedicated subwoofer may still be paired for full effect.

• Dynamic demands: With 130W power rating and 4 ohm impedance, it requires an amplifier/AV receiver capable of delivering stable current in multi-channel use. Users should ensure their centre-channel amplifier drive is adequate.

• Placement: The slim width helps when placing it under a wide screen or above a cabinet, but attention to room acoustics and proper mounting/decoupling still matters—especially in high-end systems.

• System synergy: In your context (high-end audio dealer setups), highlight that this speaker is not “just a centre”; it is engineered to high standards so the centre channel will keep up with premium front speakers rather than being a weak link. That helps ensure full system cohesion.
